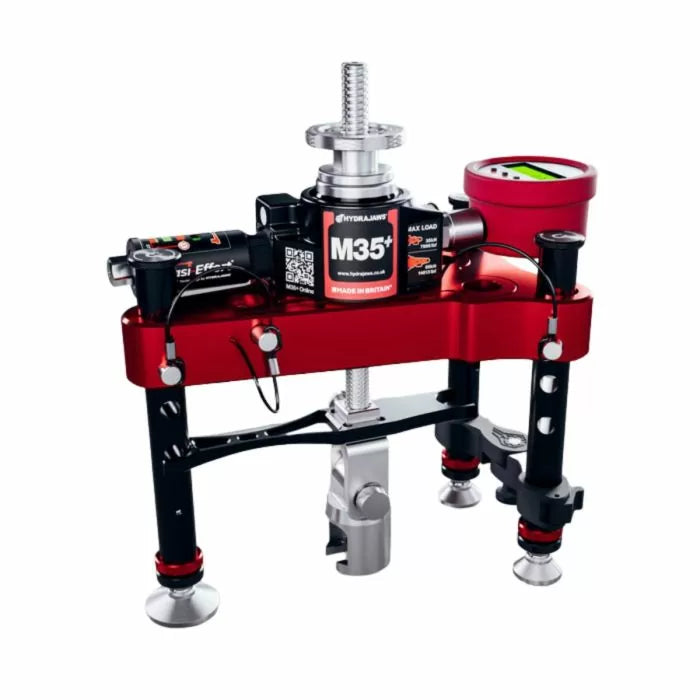

Hydrajaws M35+ Standard Kit 35kN Digital Pull Tester with Digital Guage

BULKY ITEM, ADDITIONAL FREIGHT COSTS APPLY*

Lightweight and ergonomically designed, the M35+ standard setup is the lightest unit on the market, capable of testing up-to 35kN.

Enhanced by new Easi-Effort technology developed by Hydrajaws, technicians can confidently test anchor points for 7.5kN by hand simply via the hand-wheel.

With increased testing frequency and reduced operator effort, the M35+ is an essential tool for carrying out compliance testing procedures in line with personal fall protection and scaffold ties.

Key Features:

• Complete pull testing procedures in line with BS 8539, BS 7883:2019, BS EN 795:2012, BS 8610, NASC Guidance Note TG4:19 and AEFAC-TN05.
• Advanced-Data Logging with Hydrajaws Verify Pro App - Equipped with state-of-the-art data logging capabilities, the M35+ allows for real-time monitoring and tracking of pull testing results via the Hydrajaws Verify App
• Bluetooth - dual-scale rechargeable digital gauge gives an accurate and clear display of the readings.
• Hydrajaws gauge calibration certificate (valid for 12 months).
• Apply loads by hand up-to 10kN via the operator's hand-wheel. Using the supplied ratchet the hand-wheel can be removed and loads above 10kN can be applied.

Included in the Standard M35+ Kit:

• M35+ load cell fitted to the 35kN (7,868lbf) standard bridge
• Digital Bluetooth Rechargeable Gauge
• Drop rod hand-wheel
• Operator's hand-wheel
• Height adjustable legs with swivel feet, and leg brace
• Bolt test adaptor - fits to the primary 24mm clevis fork via the captive clevis pin. Receives both slotted button and threaded button adaptors
• 8 slotted button adaptors: 4.5, 5.5, 6.5, 8.5, 10.5, 13, 16.5 and 20.5mm
• 6 threaded button adaptors: M6, M8, M10, M12, M16 and M20
• Primary 24mm clevis fork (65kN SWL) and drop rod with anti-rotation device. Accepts both bolt test adaptor and mini-clevis
• 20mm mini-clevis adaptor with 35kN SWL
• Rucksack with foam filler
• Tester lanyard
• Ratchet and ratchet tether
• 24mm spanner
• 3mm ball driver
• 12-month Calibration Certificate
• Operating Manual
